Engelbert Schmid

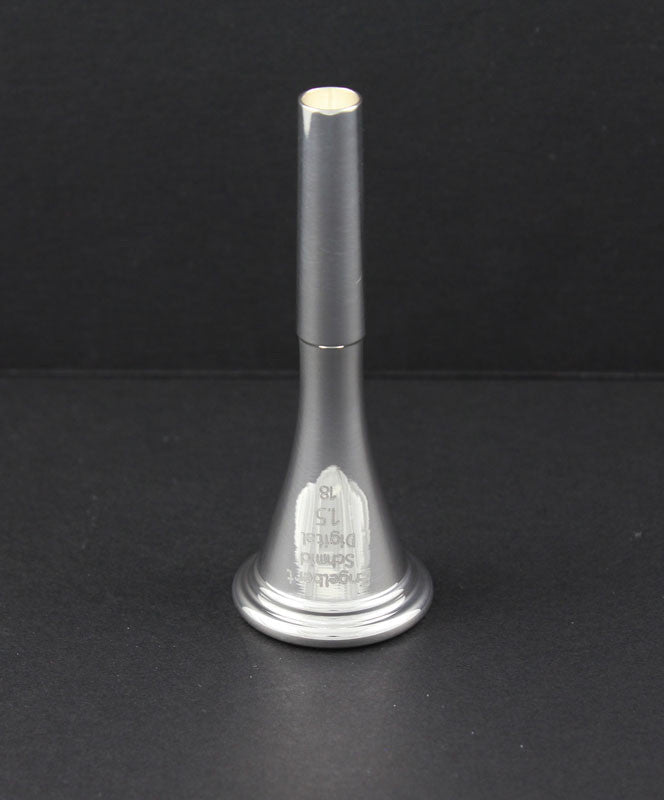

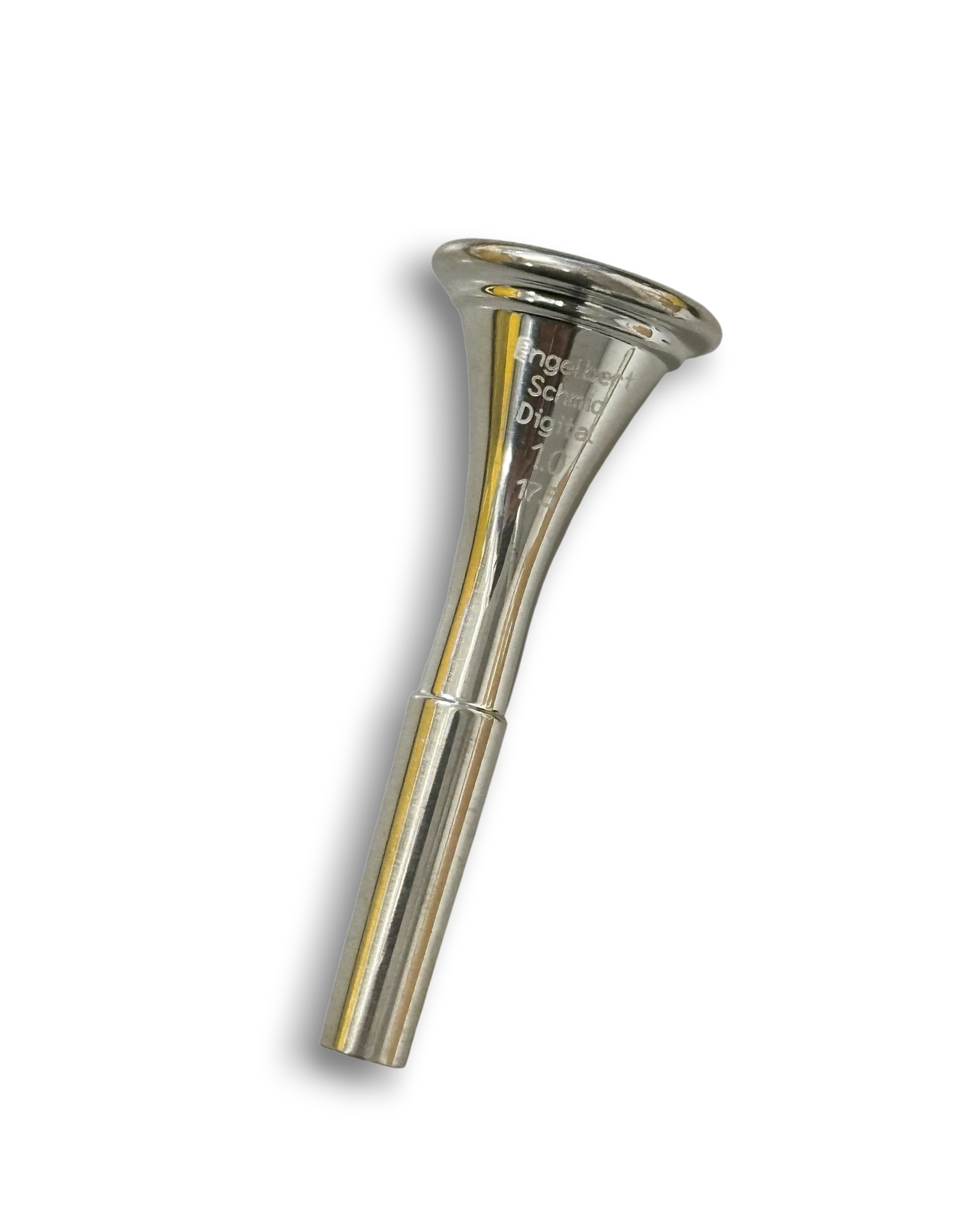

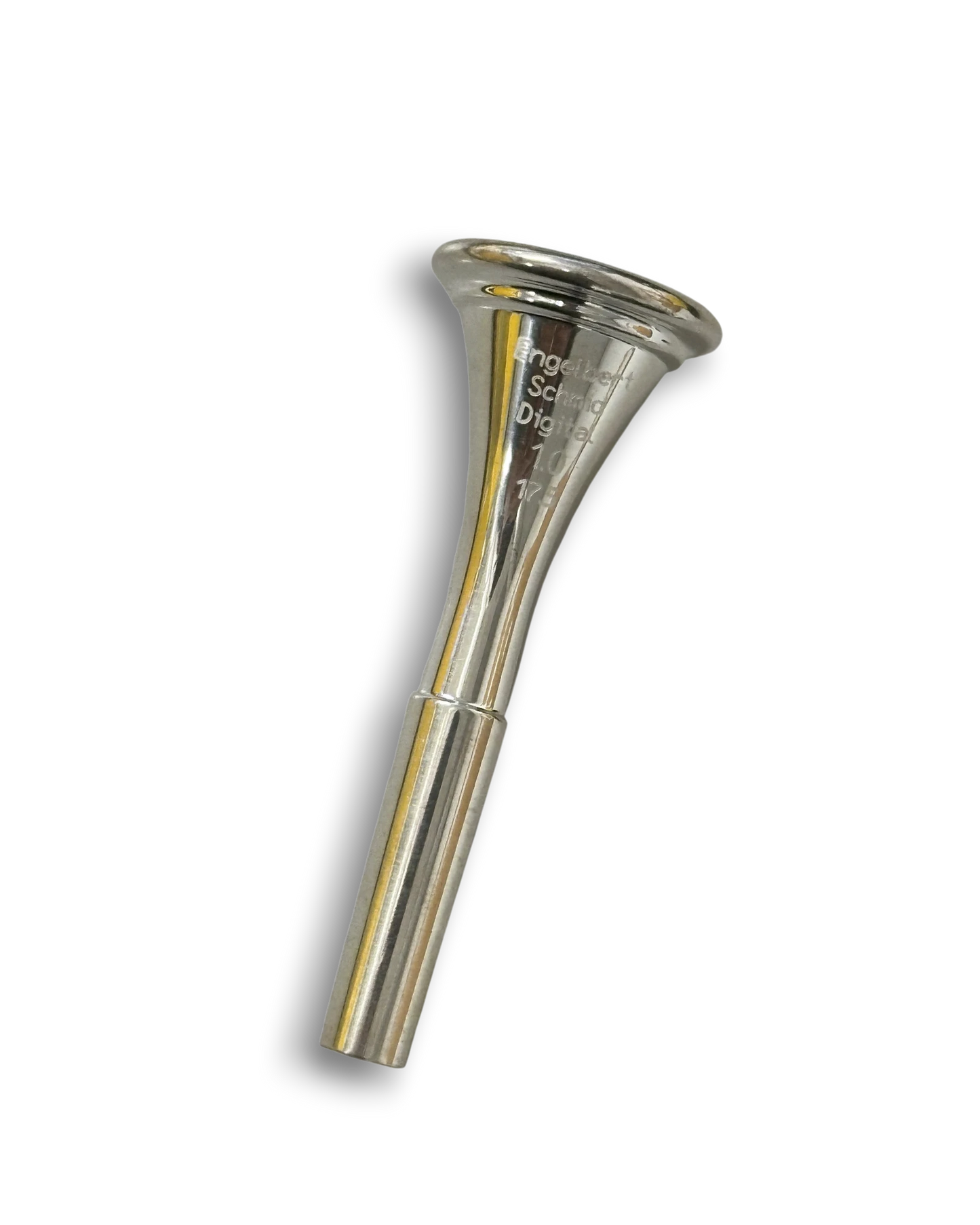

Schmid Digital Horn Mouthpiece
Schmid Digital Horn Mouthpiece
Couldn't load pickup availability
Schmid Digital Mouthpieces add deep, Viennese-contour mouthpieces to the range. Sizes 1-3 are deep, funnel-shaped mouthpieces. Available in five depths (1 is shallowest, 3 is deepest) and with 17.5 or 18mm rim inner diameters. The 4-12 sizes are very similar to the standard Schmid Series. The chief difference is the uniform 1.7mm wall thickness. Gold pieces will take an additional two weeks for delivery.
The first number (e.g. 1.0, 4.5) for each listed mouthpiece corresponds to the model/cup shape, as described below. The second number corresponds to the inner rim diameter (e.g. 17.5mm, 18.0mm).
Model 1.0- shallow funnel cup, 4.0mm bore, 4.0mm rim
Model 1.5- medium shallow funnel cup, 4.2mm bore, 4.0mm rim
Model 2.0- medium funnel cup, 4.4mm bore, 4.0mm rim
Model 2.5- medium deep funnel cup, 4.7mm bore, 4.0mm rim
Model 3.0- deep funnel cup, 5.0mm bore, 4.0mm rim
Model 3.5- extra deep funnel cup, 5.4mm bore, 4.0mm rim
Model 4.0- shallow slightly cup-shaped, 3.6mm bore, 4.0mm rim
Model 4.5- medium shallow slightly cup-shaped, 3.8mm bore, 4.0mm rim
Model 5.0- medium slightly cup-shaped, 4.0mm bore, 4.0mm rim
Model 5.5- medium deep slightly cup-shaped, 4.2mm bore, 4.0mm rim
Model 6.0- deep slightly cup-shaped, 4.4mm bore, 4.0mm rim
Model 6.5- extra deep slightly cup-shaped, 4.6mm bore, 4.0mm rim
Model 7.0- shallow slightly cup-shaped, 3.7mm bore, 4.0mm rim
Model 7.5- medium shallow slightly cup-shaped, 3.9mm bore, 4.0mm rim
Model 8.0- medium slightly cup-shaped, 4.1mm bore, 4.0mm rim
Model 8.5- medium deep slightly cup-shaped, 4.3mm bore, 4.0mm rim
Model 9.0- deep slightly cup-shaped, 4.5mm bore, 4.0mm rim
Model 9.5- extra deep slightly cup-shaped, 4.7mm bore, 4.0mm rim
Model 10.0- shallow slightly cup-shaped, 3.8mm bore, 4.0mm rim
Model 10.5- medium shallow slightly cup-shaped, 4.0mm bore, 4.0mm rim
Model 11.0- medium slightly cup-shaped, 4.2mm bore, 4.0mm rim
Model 11.5- medium deep slightly cup-shaped, 4.4mm bore, 4.0mm rim
Model 12.0- deep slightly cup-shaped, 4.6mm bore, 4.0mm rim
Model 12.5- extra deep slightly cup-shaped, 4.8mm bore, 4.0mm rim
Model 13.0- shallow slightly cup-shaped, 3.9mm bore, 3.75mm rim
Model 13.5- medium shallow slightly cup-shaped, 4.1mm bore, 3.75mm rim
Model 14.0- medium slightly cup-shaped, 4.3mm bore, 3.75mm rim
Model 14.5- medium deep slightly cup-shaped, 4.5mm bore, 3.75mm rim
Model 15.0- deep slightly cup-shaped, 4.7mm bore, 3.75mm rim
Model 15.5- extra deep slightly cup-shaped, 4.9mm bore, 3.75mm rim
